Phantom CNC Pedals

The difficult second album, its not the Nano replacement but just a different way of thinking. The new Phantom 3d machined pedal has been designed from the ground up around a solid custom extrusion to allow a completely different structure to our legendary Nano pedal. Using a C-beam structure we created a stiffer, larger and more durable platform which is posisble due to the solid profile. The downsides are double the metal cost and 3 times the machine time but it makes a technically better product.

So slightly thinner, a bit larger platform, better stiffness and durability. We think its a winner especially with its ultra minimal graphics and sleek design.

Using the proven Nano axle design technology, the Phantom pedals:

• Retain the perfect platform size, with a 101mm x 110mm, 16mm thick body
• Supplied with 8 and 10mm pins for ultimate customisation of grip.
• 440g with standard steel axles, 370g with a titanium axle upgrade, 350g with Ti Pins and Ti axle (Available separately)

• Titanium Pin Option - Save an extra 17g for the ultimate trail pedal - Note 8mm pins only (Available separately)
• Increase durability, with two sealed bearings and custom German manufactured IGUS bushing in each axle
• Custom double lip seal internally for ultimate waterprofing

• CNC machined from custom extruded 6082 aluminium

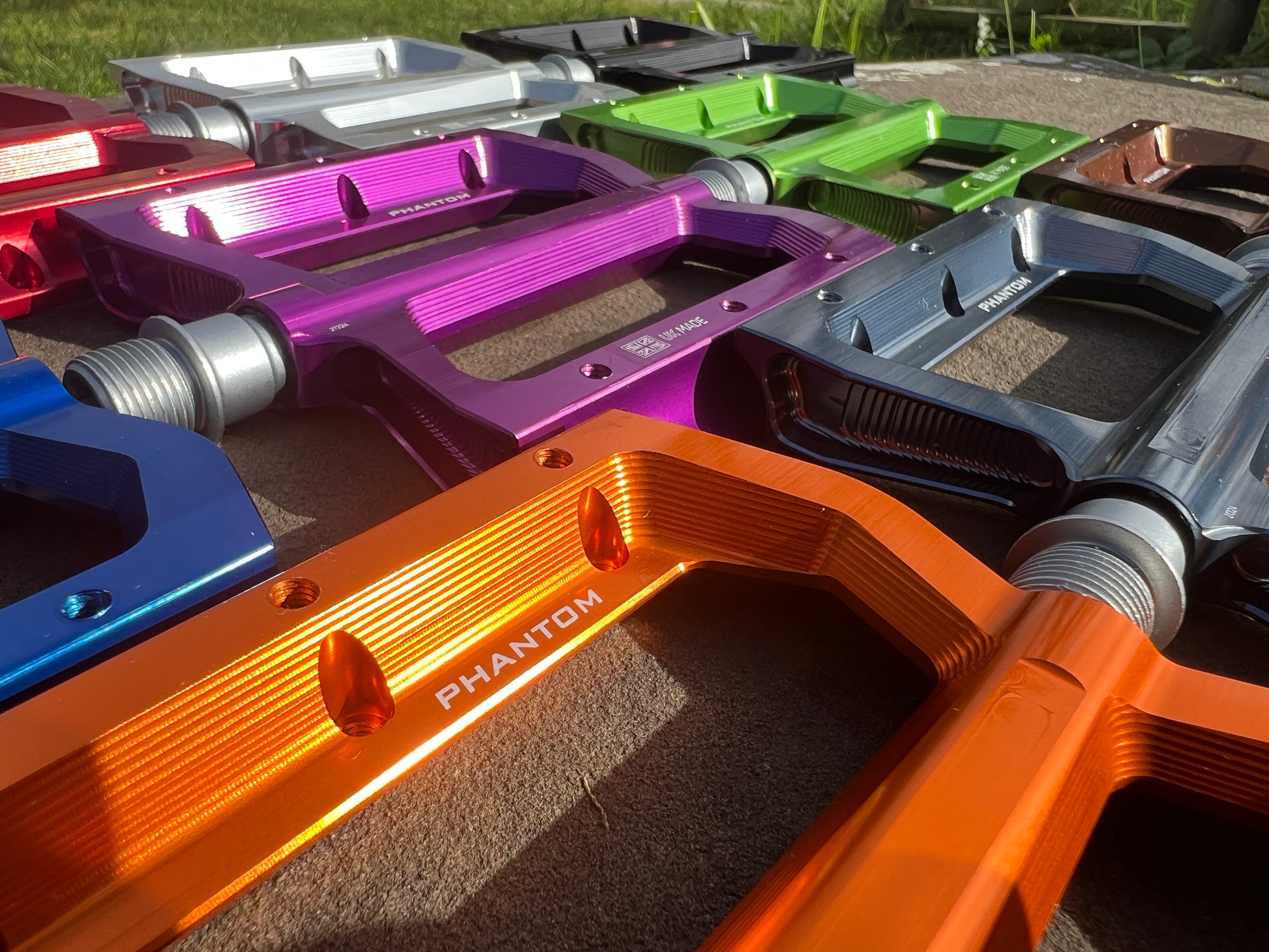

• Available in a range of colours, with laser etched logos

An evolution of the award winning Nano EVO pedals we have tweaked the platform shape and retained the perfect 110mm x 101mm size. Fitted with a custom axle system with self adjusting and lubricating IGUS bushings, and internal custom double lip sealing for industry leading durability.The new axle system is designed with extremely tight tolerances, so will feel tight in the hand but perfect in use.

With a concave body and thin 17mm profile, we have also strategically beefed up the extrusion for yet more strength. Replaceable custom steel grip pins and forged steel axles for ultimate strength, an ultralight forged titanium axle upgrade is an available option.  Join the tens of thousands of Nano riders already ripping the trails with these superb UK made pedals.

Manufactured with pride in the UK:

We manufacture our Nano X EVO 2.0 pedals using the best technology available. We've installed a state of the art FANUC robot arm to load and unload the Nano X billets into our 24,000RPM FANUC Robodrill, meaning we can make Nano X's 24 hours a day, 7 days a week (want to see more? Check out our Youtube!)

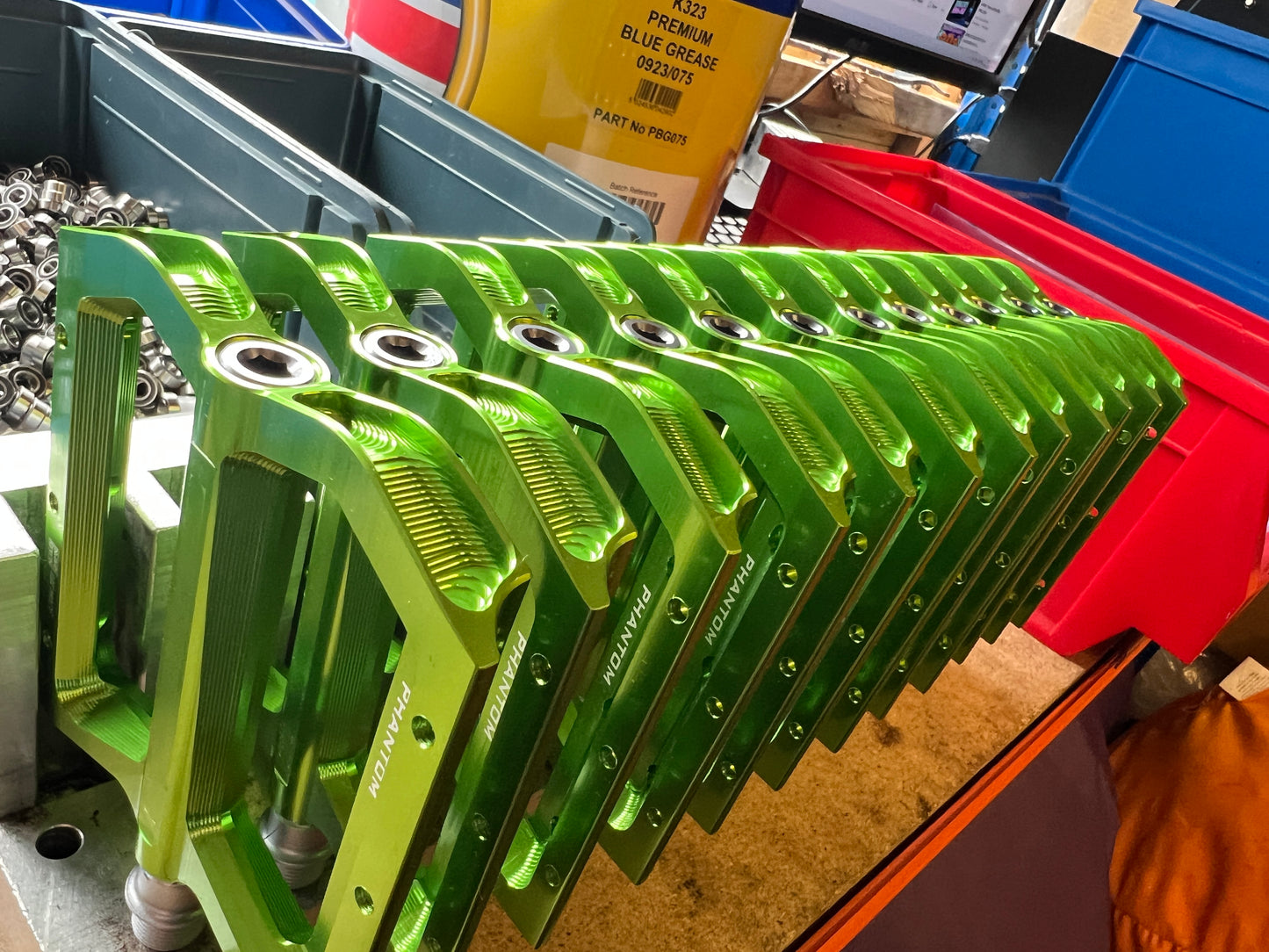

Once CNC machined, we send our pedals off to a specialist in Manchester, UK to be colour anodised, before they're returned to us to be laser etched using our Trumpf high-precision fibre laser. Then they're assembled by our skilled technicians in our purpose built assembly room, packaged up and delivered to you.

Its nice when something special doesn't cost the earth!
